high chrome grinding ball making machine

Grinding ball making machine:●Grinding ball making machine adopts sand coated in metal mold type technology,which is widely used to produce high chrome cast grinding ball.This grinding ball makin...

Quantity: - +

Product Description

Grinding ball making machine:


●Grinding ball making machine adopts sand coated in metal mold type technology,which is widely used to produce high chrome cast grinding ball.This grinding ball making machine need 78 pairs mold.The grinding ball mold is from size 40mm-150mm.The mold size is 630*630mm. Control mode is automatic PLC& intelligent remote service.Just need four workers for operating

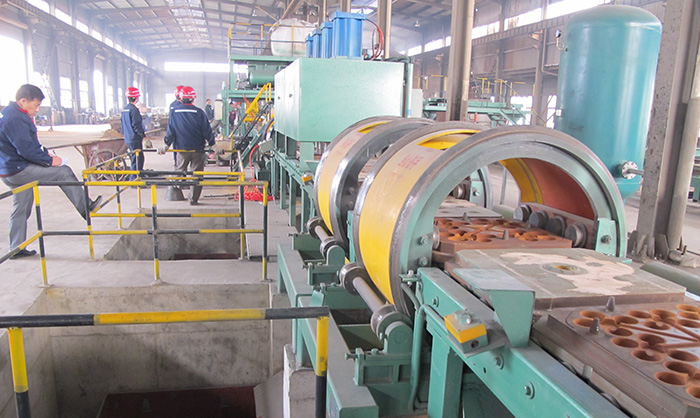

●Automatic grinding ball molding line main components:POURING STATAION→PUSH MOLD STATION→MOTORIZED ROLLER→OPEN MOLD STATION→GRINDING BALL COMING OUT FROM MOLD STATION→VIBRATING SAND STATION→CHECKING RESIDUAL SAND STATAION→INTELLIGENT TEMPERATURE CONTROL STATION→MOLDING STATION→CLOSE MOLD STATION,ETC.For better understanding,please watch vedio below.



●The whole line drives by hydraulic,pneumatic and electric.Two main control boxes and five sub-control boxes control the whole line.In the two control boxes,equipped with PLC automatic control and touching screen.Operators can monitor the whole production process by touching screen..When there is any problem,it can automatically alarm.All control box has emergency stop button.


●It also has the ability of remote maintenance&diagnose remote failure functions
